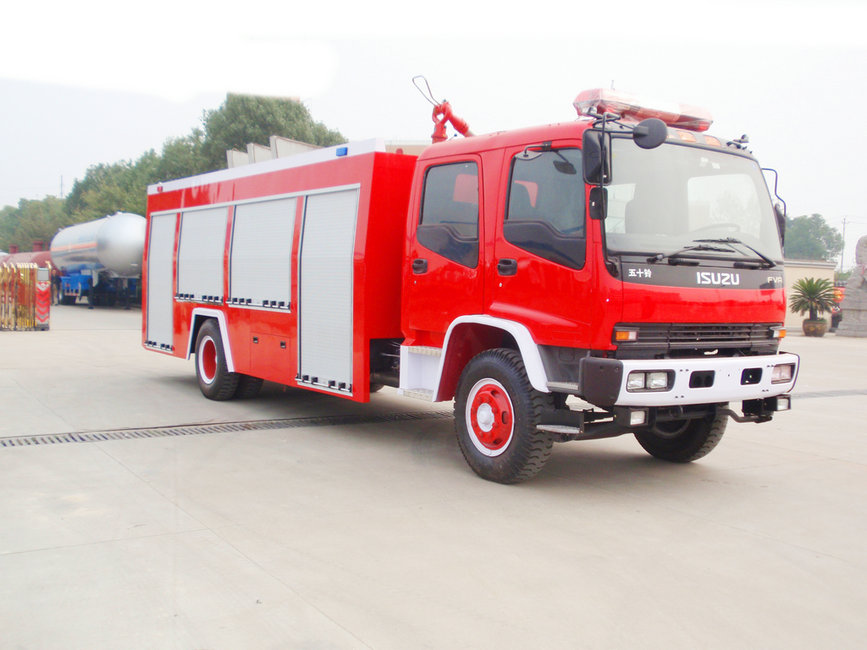

Isuzu foam fire engine

FIRE FIGHTING VEHICLE
Chassis Model /Manufacturer ISUZU QL1150WQFR
cab Double cabin (four doors )
Overall Dimension L×W×H mm 9600x2500x3920
Total Mass Kg 20,290
Rated Payload Kg 10000
Kerb Weight Kg 9900
Approach / departure angel 26/14
Front/rear suspension mm 1335/1900
Fuel type Diesel
Fuel consumption L/100km 18
Ground clearance mm 248

Engine Model/Rated Power 6HK1-TCN
Displacement/ power 7790/178kw （240HP）
Emission Standard Euro Ⅲ
manufacturer ISUZU motor Co., Ltd.
Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging
driving type 4*2
Wheel base 5500mm
Front/rear tread 1960/1855
Front axle 6.3T front axle
Rear axle 13T rear axle
Steering Power steering
Cultch Single dry diaphragm spring cultch
Brake system Air brake, exhaust brake、air cut brake
Gear box ISUZU MLD six forwards
Number of leaf spring of suspension 9/14
Type & Size of Tyre 10.00-20
Max Speed Km/h 90



Technical parameter of fire fighting body
Liquid tanker Volume: total 6000L, Water tank 6000L
Material: high quality carbon steel
Structure: welding, there is baffle plate inner.
Equipment: 2 manholes, with speediness lock and turn on equipment.
2 overflow mechanisms
2 drainage exits
Fire fighting pump and pipeline system Model of Fire fighting pump: CB10/40
Pressure: 1.0Mpa
Flux: 40L/s
Suction depth: ≥7m
Suction time: ≤35s
Installing type: central or rear
Pipeline system:
Suction pipeline: there is Ø125mm water inlet, can sop natural water source and sop the water from liquid tanker.
Water outlet pipeline: there is one middle pressure water outlet on every side, and gun pipeline with dia.≥80mm on the top of tanker.
Discharge remaining water system: to protect pump and all ball valves,
Fire fighting
monitor
消防炮 型号：PP32型消防炮
射程：水≥50m，泡沫≥45m
压力：1.0MPa
Model: PP32
Range: water≥50m  foam≥45m
Pressure: 1.0Mpa.
PTO 采用夹心式取力器，飞溅式润滑，能满足边行驶边灭火功能。
Sandwich PTO, splashing-type lubricate, can put out fire when driving.
Material of carriage 整车车厢采用优质钢材和花纹铝板制造。
Carriage is made of high quality carbon steel and Aluminum embossed sheet
Pump room Central type, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
泵房：中置，设置水泵系统及管路，结构紧凑、合理，各种仪表、操纵开关设置方便
Equipment box Equipment box: at the back of carriage, there is two-layers clapboard, can store equipment. There is safe ladder to up and down on the back of equipment box.
Structure: whole frame is welded to ensure intension and rigidity.
Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed.
器材箱：位于车厢后部，内设二层隔板，可存放各类器材。器材箱后部设置有供安全上下的安全梯。
结构：整体框架焊接结构，保证其强度和刚度。
材料：骨架为优质钢材，内饰板为花纹铝板，表面经阳极化处理。
Rolling shutter door Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with one set lock.
卷帘门：采用轻型优质铝合金卷帘门，启闭灵活，密封性好，噪音低，外形美观。卷帘门设门锁1把，安全可靠。
pedal  Adopt air-supporting structure to overturn easily and safely lock.
Material is high quality Q235A, pedal is non-skid aluminum embossed sheet
脚踏板：在车厢裙部空间制作小型器材箱，采用气支撑结构翻转，锁紧方式方便可靠。其材质为优质Q235A，踏板为防滑花纹铝板。
Electric control system 1. Alarm
Warning light: Lightweight Rectangular, installed on the top of cab, in accordance with outside of whole truck.
Siren: 80W. with FM / Public Address System and megaphone
2. Light in equipment and pump room can be controlled in carriage.
3. Other light: one light on the top of vehicle, the switch in the cab.
电气控制系统：
1．警报 警灯：采用长条形，设置于驾驶室顶部，外形符合整车外观要求。警报器：功率80W的调音调频警报，带有扩音装置。
2．器材箱、泵房照明：可在车厢内控制。
3．其他照明：车厢顶部设置火场照明灯1个，控制开关在驾驶室内。
color The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck.
消防车整车色调为消防红色，中部有装饰白色与整车相匹配，后轮翼子板为白色
Technical requirement 1. The fire fighting vehicle is accordance with GB7965 Performance requirements and test methods for fire fighting vehicle.
2. Tank of foam and water is accordance with GB39.5 General Specification for fire fighting vehicle.
3. the outside is very beauty, the surface roughness is accordance with GB39.5 General Specification for fire fighting vehicle.
All operating switch and meter is accordance with standard nameplate.
总体技术要求：
1． 整车性能符合GB7956《消防车性能要求及试验方法》的规定。
2． 水罐质量符合GB39.5《泡沫消防车通用技术条件》的规定。
3． 整车外观大方，平整度符合GB39.5《泡沫消防车通用技术条件》的规定。
所有操作开关、仪表及车辆均符合规范的铭牌标志。
