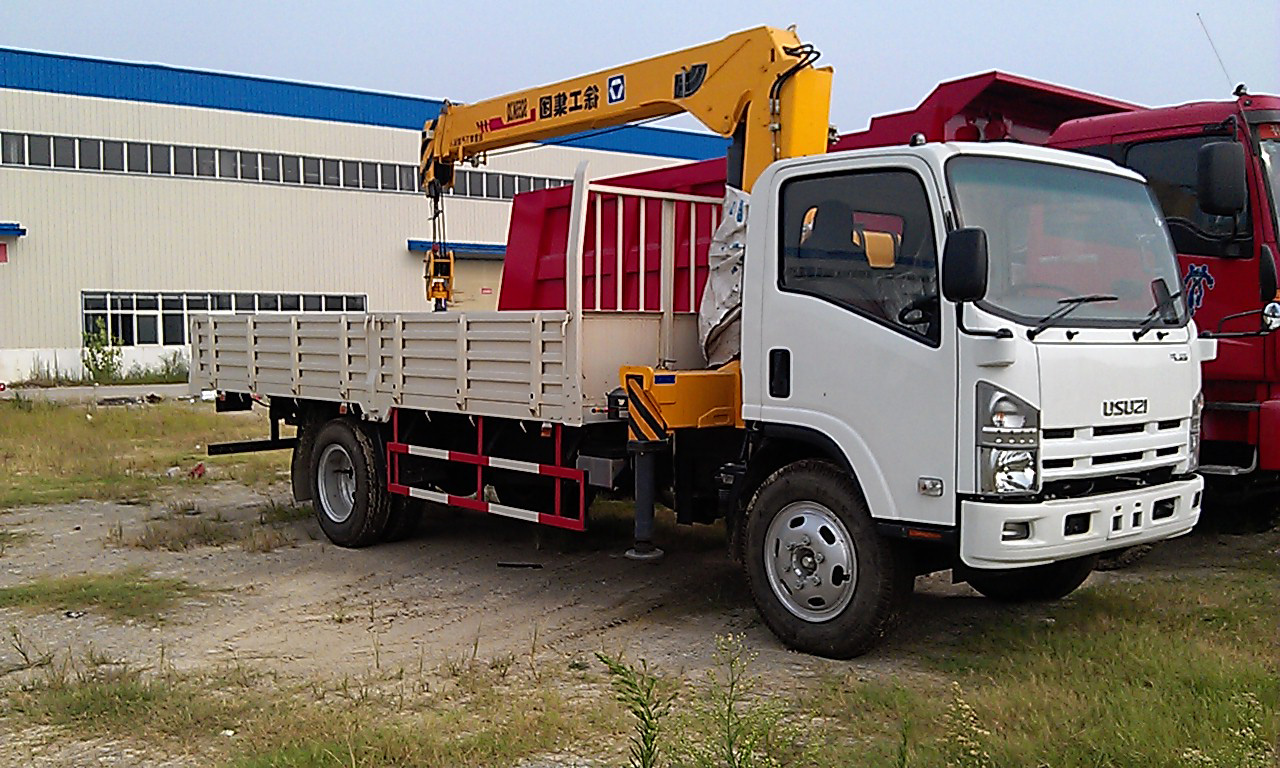

Isuzu ELF boom crane truck XCMG 5T

Chassis Model /Manufacturer

QL1100TLARY

cab

LHD

With air-condition

Overall Dimension

L × W × H

mm

7800×2400×3000

Total Mass

Kg

11285

Loading weight

kg

5000

Kerb Weight

Kg

5910

front overhang/rear overhang

1100/2060

Engine

Model/Rated Power

4HK1-TC / 129kw, 175Hp

Emission Standard

Euro 3

Displacement

5193L

manufacturer

ISUZU motor Co., Ltd.

driving type

4X2

Steering Type

Powering steering

Type & Size of Tire

8.25-16

Tread( front/rear)

1680/1650

Front axle

4T front axle

Rear axle

7T rear axle

Wheel Base

mm

4475mm

Number of leaf spring of suspension

piece

8/10+6

cargo body size

mm

5500*2300*500

Max Speed

Km/h

95

Model of Crane

SQ5SK2Q

Max. Lifting capacity

5000 Kg

Max. Lifting height

10.5m

Max Lifting Moment

12.5 T.m

working radius

8.7 m/kg

Recommend Power

18Kw

Max. oil flow of hydraulic system

32 L/min

Max pressure of hydraulic system

20Mpa

oil tank capacity

90 L

crane weight

2074kg

installation space

900 Mm

rotation angle

All rotation,360°

Working radius (m)

2.1

4.44

6.2

8.01

Lifting capacity (kg)

5000

2400

1600

1050
