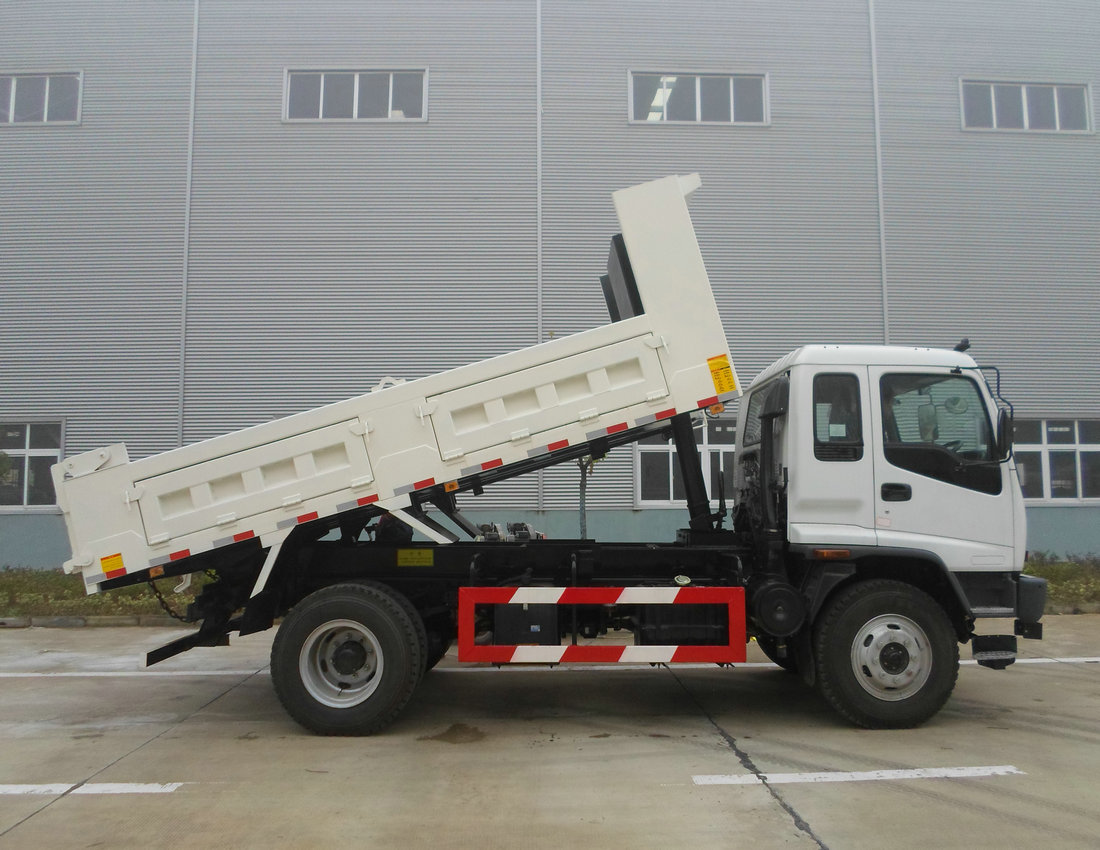

Isuzu FVR soil transportation truck
- Isuzu FVR soil transportation truck
- Product description: Isuzu FVR soil transportation truck
PRODUCT INTRODUCTION
|
vehicle model |
QL1160 |
||
|
Dump body dimension LxWxH mm |
4600*2300*600 Side 6mm, bottom 8mm |
||
|
weight |
gross weight |
kg |
16500 |
|
Rated payload |
kg |
10000 |
|
|
Curb weight |
kg |
10200 |
|
|
Axle base |
mm |
4500 |
|
|
Whole Vehicle Overall Dimension |
Length |
mm |
8165 |
|
Width |
mm |
2490 |
|
|
Height (non-loaded) |
mm |
3530 |
|
|
Engine |
Model |
6HK1 240hp |
|
|
Power |
kW/rpm |
206/2400 240hp |
|
|
Torque |
N.m/rpm |
883/1450 |
|
|
Fuel |
Diesel |
||
|
the highest speed of design |
km/h |
95 |
|
|
passengers |
5 |
||
|
Tire specifications |
Standard configuration |
10.00-20 |
|
Isuzu 6HK1 diesel engine 240hp, Euro 4 emission, MLD six gears transmission, with cool and warm A/C, hydraulic assist, central lock, electric power window, air brake, USB audio, front axle 6.3T, rear axle 13T, tyre 10.00-20, exhaust brake.
