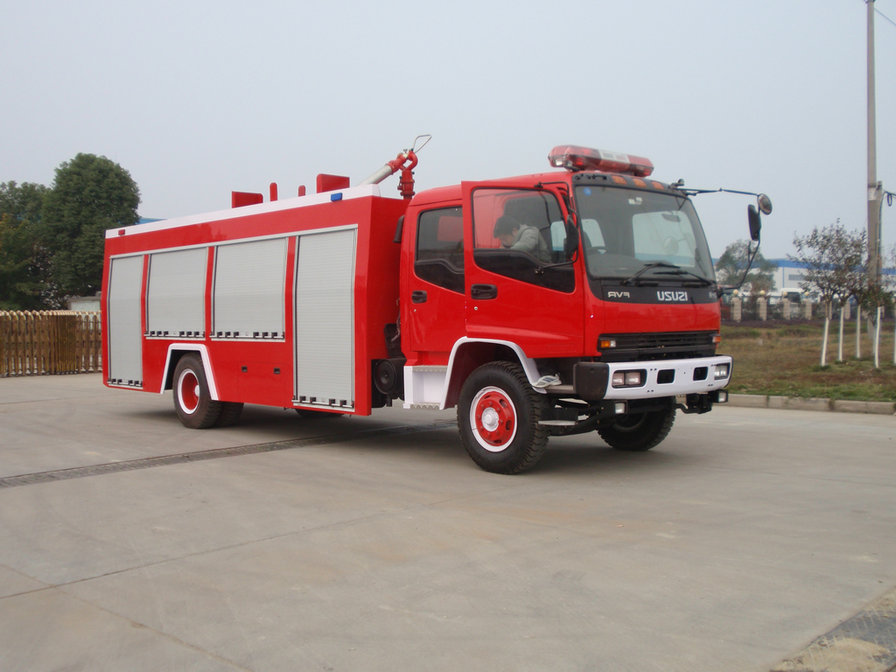

Isuzu fvr water tank fire truck

Chassis parameters
Chassis model QL1160AMFRY Chassis brand ISUZU
Overall dimensions 7555x2465x2810mm Wheel base 4500mm
Front/rear wheel track 1960/1855mm Front/rear suspension 1335/1720mm
Approach/departure angle 26/14° Maximum speed 95km/h
Chassis Manufacturer QingLing Motors (Group) Co., Ltd.
Cab Configuration FVR, double rows cab, allowable 3+3 passengers, with air conditioner, central locking, electric windows, USB audio, cab can be flipped.
Color White, other color is optional
Engine Model 6HK1-TCNG40
Emission Euro 4
Type 6 cylinders, in-line, 4-stroke,Exhaust gas turbo, air-to-air inter-cooling ,diesel engine
Rated power 240hp
Displacement 7790ml
Manufacturer Isuzu Engine (Chongqing) Co., Ltd.
Tire Size 10.00-20 16PR nylon tire
Number 6+1 nos
Frame 258X85(10+4)mm
Front axle 6.3 tons
Rear axle 13.0 tons
Drive form 4X2
Suspension Multi leaf springs
Rated voltage 24V,DC
Transmissions Isuzu MLD six speed transmission,6 speed forward 1 reverse.
Steering device Power assisted steering
Steering wheel Left hand drive
Selective configuration Tire :1000R20,1100-20,1100R20
If there is a slight change in the chassis parameters above, please take the actual product as the standard

Fire truck structure parameters
Water tank volume 6000L Tank material Carbon steel
Tank thickness 5mm Fire pump CB10/40
Fire gun PS40/PL32 Color and Logo Optional
Standard configuration Chassis, sub frame, van body, America DOPPON paint baking varnish, national standard equipment box, 25 units national standard fire-fighting equipment, fire pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools, rear climbing ladder, water tank.
Selective configuration foam type, dry powder type, stainless tank, other requirements.
