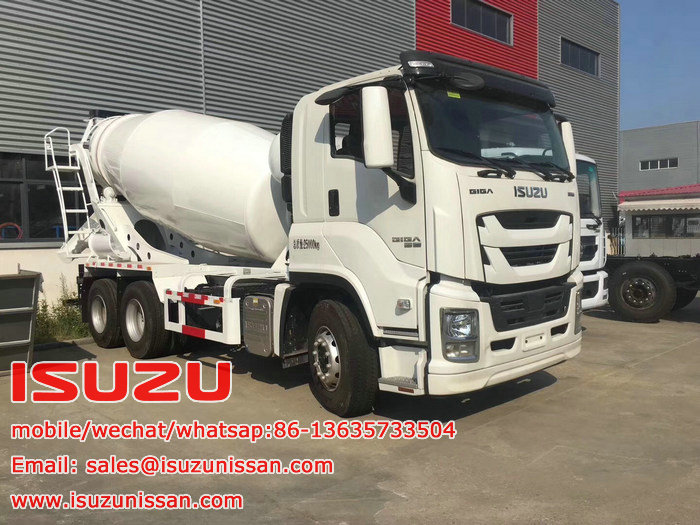

Isuzu giga 6x4 cement mixing truck 10cbm
- Isuzu giga 6x4 cement mixing truck 10cbm
- ISUZU GIGA 460hp mixer truck
- Isuzu giga 6x4 cement mixing truck 10cbm
- Isuzu concrete mixer truck
- Product description: Isuzu giga 6x4 cement mixing truck 10cbm ISUZU GIGA 460hp mixer truck concrete mixer truck
PRODUCT INTRODUCTION
Isuzu giga 6x4 cement mixing truck 10cbm
ISUZU GIGA 460hp mixer truck concrete mixer truck
ISUZU giga adopt 460hp, euro 5 diesel engine 6WG1-TCG , fast gearbox 12 speeds, multi function panel , multi function steering wheel, 315/80r22.5 tire, A/C, hydraulic steering, central lock and electric windows, ABS, front axle 8T, rear axle 13-26T.
| Isuzu giga concrete mixer truck 10cbm | 6X4 | ||
|
|
|||
| 460hp | QL5330 | ||
| Overall dimension (mm) | 9800x2500x3980 | ||
| weight | gross weight | kg | 25000 |
| Rated payload | kg | 14750 | |
| Curb weight | kg | 13400 | |
| Axle base | mm | 3985+1370 | |
| engine | Model | 6WG1-TCG | |
| Power |
|
460hp | |
|
|
|||
| 338kw | |||
| Torque | N.m/rpm | 2256/1800 | |
| fuel | diesel | ||
| Max. designed speed | km/h | 90 | |
| passengers | 3 | ||
| Tire specs | Standard configuration | 315/80R22.5 | |
| other configuration | A/C, hydraulic assist, central lock, electric windows, ABS, | ||
| Euro 5, Fast transmission 12 speeds | |||
|
|
|
|
|
| Technical parameters of mixing drum | Mixer tank capacity | L | 10000 |
| Filling rate | % | 63 | |
| Rate of feeding | m3/min | ≥3 | |
| Rate of delivery | m3/min | ≥2.0 | |
| The remaining rate | % | ≤0.1 | |
| Tube service spped | r/min | 0~12 | |
| Tube dip | ° | 13~15 | |
