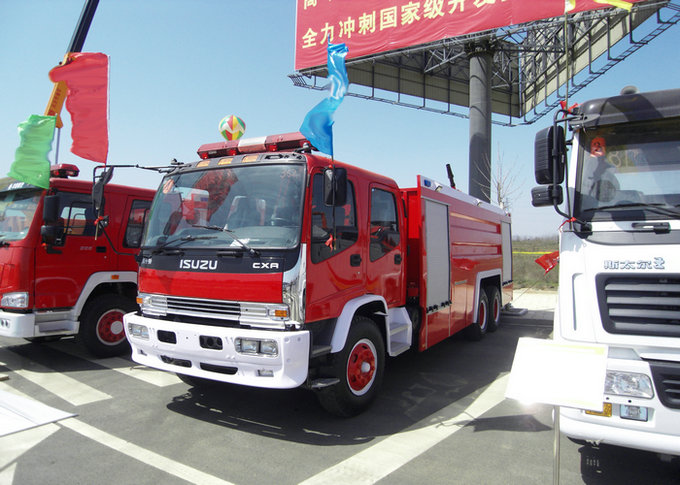

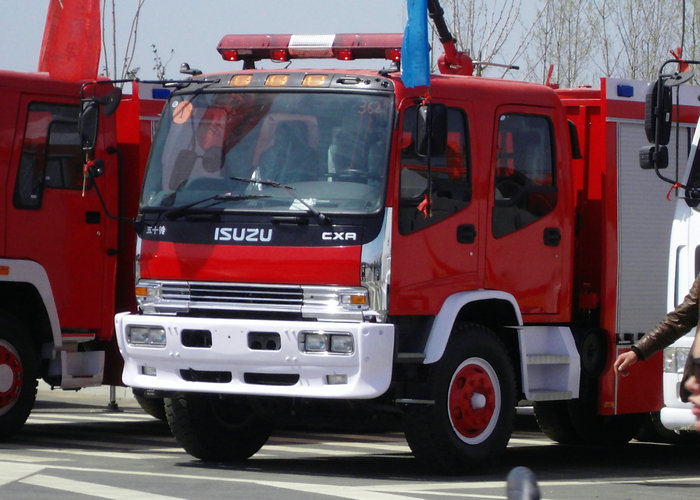

ISUZU CXA fire fighting truck fire engine

cab

Double cabin (four doors )

Overall Dimension

L×W×H

mm

9600×2500×3920

Total Mass

Kg

20,290

Rated Payload

Kg

10000

Kerb Weight

Kg

9900

Approach / departure angel

26/14

Front/rear suspension

mm

1335/1900

Fuel type

Diesel

Fuel consumption

L/100km

18

Ground clearance

mm

248

Engine

Model/Rated Power

6HK1-TCN

Displacement/ power

7790/178kw （240HP）

Emission Standard

Euro Ⅲ

manufacturer

ISUZU motor Co., Ltd.

Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging

driving type

4*2

Wheel base

5500mm

Front/rear tread

1960/1855

Front axle

 6.3T front axle

Rear axle

 13T rear axle

Steering

Power steering

Cultch

Single dry diaphragm spring cultch

Brake system

 Air brake, exhaust brake、air cut brake

Gear box

ISUZU MLD six forwards

Number of leaf spring of suspension

9/14

Type & Size ofTyre

10.00-20

Max Speed

Km/h

90
